Now when it comes to that heater-sheld, I started out making it from .015 sheet styrene., but it would not hold it's round shape so I went to K&N .005 sheet brass. It holds it's shap a lot better.

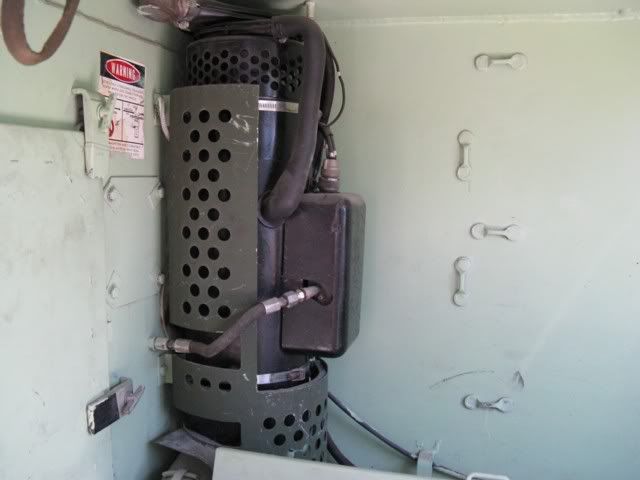

Here the real 1:1 heater and sheld.

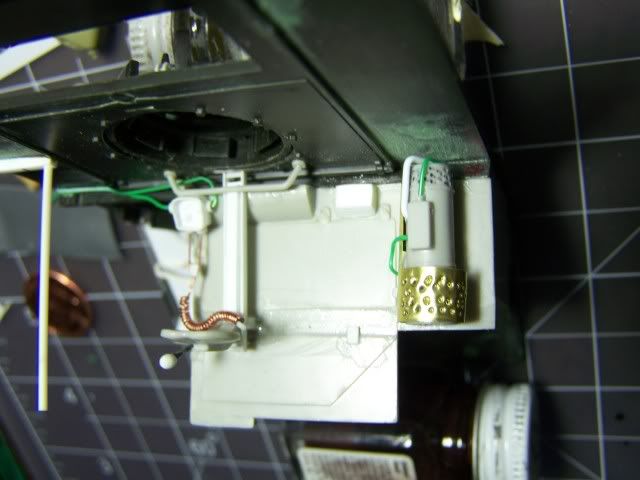

Now my work on the 1/35 M113 heater and it's sheld. You also my notice that I added some .030 strips to the brass so I could make space between the shield and the heater, as seen in the real photo.


Now the heater mounting on the fire wall. Note: the small (MCB-monitor control box)
